PP IP67 Waterproof Protective Box approx. 9.0 L

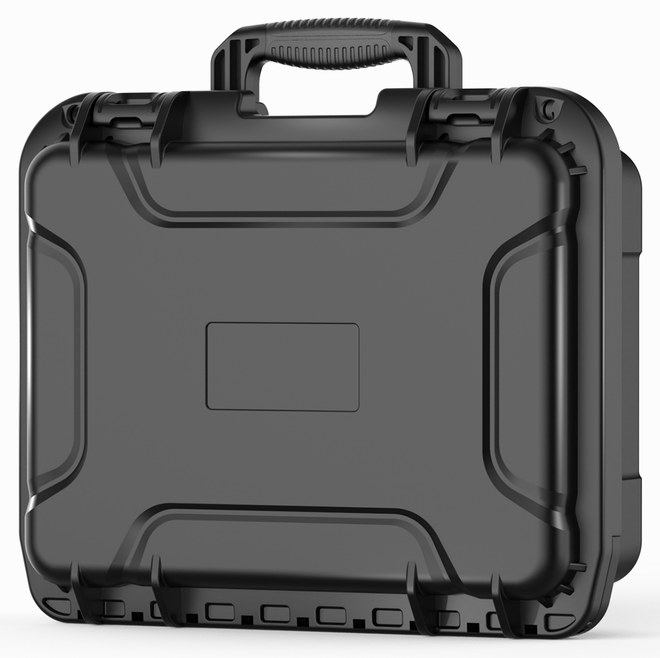

A7-3514 Waterproof Protective Box

A7-3514 belongs to the ARMYARMOR A7 Waterproof Protective Box range. PP shell, L345×W290×H135mm outside, L315×W235×H122mm inside, 1870g empty, rated IP67 — suitable for test instruments, drones, medical devices and photographic equipment.

Outer sizeL345×W290×H135mm

Inner sizeL315×W235×H122mm

Empty weight1870g

Capacity9.0 L

Request a quote Same series

Custom colour, logo and foam available · Samples on request · Export documentation supported.

Product overview

A7-3514 is a standard model in the ARMYARMOR A7 range. The PP shell is moulded in one piece, measuring L345×W290×H135mm outside and L315×W235×H122mm inside at 1870g empty — balancing portability with structural strength. New-generation PP with IP67 waterproof rating, shock and crush resistance and wide temperature tolerance. Pressure relief valve and double-throw latches as standard, from compact hand cases to long wheeled cases.

With approximately 9.0 L of internal volume, A7-3514 suits test instruments, drones, medical devices and photographic equipment. If your equipment has protruding knobs, lenses or connectors, pair it with a moulded or CNC machined insert for a secure, cushioned fit.

Construction & features

IP67 waterproof rating
Pressure relief valve as standard
Double-throw reinforced latches
Crush, drop and temperature resistant
Full size range incl. long wheeled cases

Typical applications

Drones and camera equipment
Police, fire and emergency response
Precision instruments and test gear
Outdoor and water operations

Customisation

Colour: Pantone matching with physical sample approval.
Logo: silk screen, sticker, PVC label, metal nameplate or epoxy doming.
Lining: moulded foam, one-piece EVA, CNC machined insert, corrugated or nylon dividers.
OEM/ODM: structure design, tooling, sampling and mass production.

Full specifications

Model	A7-3514
Series	A7 Waterproof Protective Box
Material	PP
Outer size	L345×W290×H135mm
Inner size	L315×W235×H122mm
Upper / lower depth	32+90
Empty weight	1870g
Internal capacity	9.0 L
Waterproof rating	IP67
Colour	Black / Pantone custom
Customisation	Colour, logo, foam, OEM/ODM

Dimensions and weights are taken from the printed catalogue; ±2 mm tolerance applies.

FAQ

What are the internal dimensions of A7-3514?

A7-3514 measures L315×W235×H122mm internally (about 9.0 L), suitable for test instruments, drones, medical devices and photographic equipment. Allow 10–20 mm buffer around your equipment when selecting.

Is A7-3514 waterproof?

A7-3514 is rated IP67, protecting contents during temporary immersion.

Can colour, logo and foam be customised?

Yes. A7-3514 supports Pantone colour matching, five logo processes (silk screen, sticker, PVC, metal plate, epoxy) and moulded, EVA or CNC machined inserts. MOQ depends on the process.
